Raveon model RV-M7 Transponder PDF  | Print |
The Raveon model RV-M7 transponder is a rugged high-speed UHF data modem with a built-in 12-channel GPS receiver. It has up to 5 watts of RF power output, and operates as both a GPS transponder for tracking, and a radio modem for sending and receiving data.

The RV-M7 may be configured for a number of different GPS applications, including:

Transponder: Periodically transmit position and status.
GPS display: Connect RV-M7 to a hand-held or mobile GPS, and icons will appear on the display showing the location of all other RV-M7 radios in the system.
Radar Display: Radar Display: Connect RV-M7 to a marine plotter or radar display, and icons will appear on the display showing the location of all other RV-M7 radios in the system.
RavTrack PC: Connect the RV-M7 to a personal computer running RavTrack PC (or other PC software) to view a map showing location, status, log movement, set alerts, and make reports from the data.

As well as transmitting its position and status over the air, the RV-M7 also has a radio modem with integrated RS232/422/485 interface for sending and receiving data.

For privacy and security, over-the air encryption is standard on every RV-M7 radio. For network versatility, the RV-M7 incorporates a 16-bit identification code, allowing up to 65,000 objects to be identified in one system. For wide-area coverage, all RV-M7 transponders may be set to store-and-forward messages from other RV-M7 transponders. Although the RV-M7 is the easiest to use modem on the market, and makes the easiest to set-up Automatic Vehicle Locations (AVL) system available, its re-programmability makes it extremely versatile. Most parameters within the modem may be re-configured to optimize it for specialized operations, extended range, or higher data throughput.

Features

  • Transmissions include ID, position, speed, heading, voltage, temperature, input/output status, UTC time, and proximity.
  • Ultra-fast 3mS TX-RX switching and 4-level GFSK modem allows truly "Real Time" tracking and status.
  • Outputs and accepts NMEA 0183 GLL, TLL, WPT, GSV, and PRAVE messages.
  • High-speed over the air data rates. 19200bps in 25kHz channel, 9600bps in 12.5kHz
  • Built-in TDMA channel access allowing truly real-time tracking (200 transmission in 10 seconds)
  • Very low current draw. As low as 25mA average
  • 16 bit addressing for up to 65,525 different unique IDs per channel.
  • Programmable proximity alert ( 1-9999 meters) and programmable position report rate (1-9999 seconds).

Specifications

All measurements made per TIA-603-B
General
  • Frequency................... Model RV-M7-UC 450 - 480MHz / Model RV-M7-UA (export only) 403 - 434MHz
  • Size ................... 5.0 X 3.76W X 0.95H
  • Weight ................... 6 ounces (0.17kg)
  • DC input voltage ................... 10-16V DC
  • Typical current draw, receiving, over-the-air rates ................... < 4800bps <115mA
  • Typical current draw, receiving, over-the-air rates >= 4800bps ................... <125mA
  • Current draw when transmitting data ................... <1.5A max, 1.2A typical at 2watts / <2.7A at 5watts
  • Low Power Mode standby current (AT command) ................... <30mA
  • Sleep Mode standby current (hardware control) ................... <1mA
  • Frequency stability ................... ±1.5ppm
  • Over-the-air baud rates (programmable) ................... 4800, 5142, 8000, 9600, 19200

    •      Note: Contact the factory for enhanced-sensitivity applications (1200 & 2400 baud)
  • Internal data buffers (transmit and receive) ................... >2000 bytes
  • Operating temperature range ................... -30ºC to +60ºC (-30ºC to +80ºC storage)
  • TX-RX and RX-TX turn-around time ................... <3mS
  • Power on time to operational ................... <500mS
  • LPM Standby to operational ................... <20mS
  • Internal fuse 3A mini blade. Littlefuse part number 0297003 or Raveon part, number 1X726-3
  • FCC ID Model RV-M7-UC ................... SRS-RV-M7-UC

    •      All other models for export or OEM use
Transmitter
  • Maximum RF power output ................... ½ - 5 watts
  • Maximum duty cycle ................... 100% at 2W, 25% at 5W
  • Maximum transmit frequency deviation ................... ± 2.25kHz
  • RF Bandwidth ................... 20Mhz, no-tune
  • Occupied bandwidth ................... 11 kHz (12.5kHz channels) / 15.3kHz (25kHz channels)
  • TX spurious outputs ................... < -70dBc
  • Emissions designator................... 11K0F1D (12.5kHz channels) / 15K3F1D (25kHz channels)
Receiver
  • Typical RX sensitivity (1% BER)

    • ...................19200bps, 4-level, 25kHz channel -108dBm
    ...................9600bps, 4-level, 12.5kHz channel -108dBm
    ...................4800bps, 2-level -116dBm
  • No-tune bandwidth ................... 20MHz
  • RX selectivity ................... -50dB (12.5kHz channel spacing) / -65dB (25kHz channel spacing)
  • Spurious and image rejection ................... -75dB
  • RX intermodulation rejection ................... -70dB
  • Conducted spurious emissions ................... <-53dBm
User Input and Output Signals
  • Serial port baud rates ................... 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Voltage levels ................... RS-232, RS-422, and RS-485 complaint levels
  • Modem handshake signals ................... RTS, CTS, DTR, DSR, CD
  • Transceiver RF ................... 50 ohm BNC (TNC on -WX version)
  • GPS Connection ................... SMA 50 ohm, 3.3V for amplified antenna
  • Power ................... B+ input and Ground
  • Digital Inputs ................... 2
  • Power Connecto ................... Phoenix 18 36 18 9 ( Raveon P/N 1J165-3 )
GPS and Transponder Specifications
  • Number of channels ................... 12
  • Horizontal accuracy (24 hour static) ................... <2.5m 50%, <5m 90%
  • Acquisition (-130dBm, 50%) ................... <40sec cold start, <8sec hot start
  • Sensitivity Tracking ................... -150dBm, Acquisition -142dBm
  • NMEA Output sentences ................... WPL, TLL, GLL, GSV, PRAVE
  • Position report rate, programmable ................... 1 to 9999 seconds
  • Position report resolution ................... 0.0001 degrees
  • Voltage report resolution/accuracy ................... 0.1V/10%
  • Temperature resolution and accuracy ................... 2 degrees C/2 degrees C
  • Number of digital inputs ................... 2
  • Velocity resolution and accuracy ................... 1km / 1km per hour
  • GPS connector ................... SMA

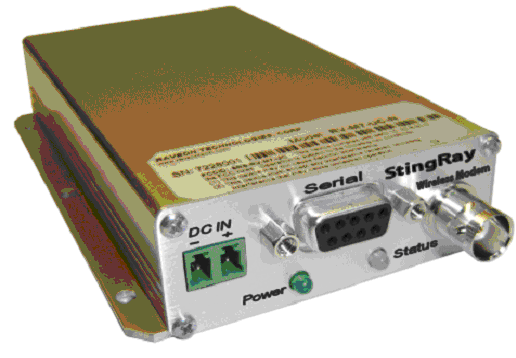

Images





In The Box

Model: RV-M7-UC-GX

  • RV-M7 Transceiver with built-in GPS, 450-480MHz, BNC RF connector, and SMA GPS connector. DB-9 RS-232 connector on chassis.
  • DC power cable.
  • Quick-start guide.

Model: RV-M7-UC-GX-WX

  • RV-M7 Transceiver in IP65 weatherproof housing, built-in GPS, 450-480MHz, TNC RF connector, and SMA GPS connector. Waterproof 6-pin circular I/O connector, and 3-pin circular DC power connector.
  • DC power cable. 3-pin circular connector.
  • C6 to DB9 I/O cable, 1 meter.
  • Quick-start guide.
