Radio Cables
This is a list of cables available to power and/or communicate with Raveon’s M7 series of transponders.

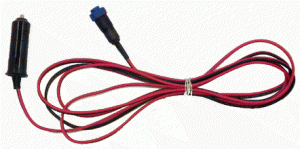

Automotive adaptor DC power cable with 2-pin Phoenix-type connector, for use with RV-M7 series transceivers.
Connector, male on cable …………….. Raveon 1J165-6, Phoenix Contact 1900772
Connector, female on housing ……….. Raveon 1J165-5, Phoenix Contact 1836189
Auto Power Cable, 12vdc
| Connector Types | STD Auto/RT 2-Pin Power |
| Voltage | 10-16 Vdc |
| Current | 3 amp max |
| Cable Length | 6′ |
DC Power Cable with 2-pin Phoenix-type connector for use with RV-M7 series transceivers. Screw-down wire connection.
| Connector Types | M7 2-pin Power with Stripped wire |
| Current | 4 amps max |
| Length | 6′ |
| Warranty | 1 Year |
Auto Power Cable, 12vdc, IPC65 Waterproof, For use with -WX option on RV-M7 transceivers.
| Cable Type | IPC65 Waterproof |
| Connector Types | STD Auto/WP6-pin |
| Length | 10′ |
| Warranty | 1 Year |
DC Power Cable, 6′, For use with -WX option on RV-M7 transceivers.
DC power cable for your Raveon RavTrack GPS AVL transpoder.
This cable works with the RV-M7-UC-WX, RV-M7-VB-WX, and all othe GPS transponders with the -WX weatherproof option.
| Cable Type | IPC65 Waterproof |
| Connector Types | WP3-pin/Stripped wire |
| Length | 6′ |
| Warranty | 1 Year |
RS232 Data Cable, IPC65 Waterproof, for use with -WX option on RV-M7 transceivers.
| Cable Type | IPC65 Waterproof |
| Connector Types | DB9 / WP6 |
| Length | 10′ |
| Warranty | 1 Year |
In-Line DC Surge Protector.
| Part Number | 6A366-1 |
| Cable Type | IPC65 Waterproof |
| Connector Types | DB9 / WP6 |
| Length | 12″ |
| DC Input Range, operational | 10V to 16V |
| DC Input Range, protected | -20V to +50V |
