USB Interface Option

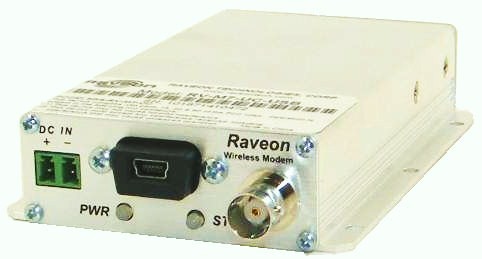

USB Interface Option for the M7 series of GPS tracking radios

Features:

  • MINI-B connector
  • USB connector provides the interface for connection to a USB Host or Hub port.
  • An internal FTDI FT232R provides the USB-to-Serial conversion.
  • Operating system device drivers are required in order to operate with the FT232R to provide the Virtual COM Port serial functionality.
  • Works with USB 1.1 & 2.0 Host and Hub ports
  • Microsoft Windows® WHQL-certified, Mac OS X, Linux and Windows CE device drivers
  • Installs as a standard Windows COM port
  • Supports Windows Server 2008, 2003, Vista, XP 2000, Linux, Mac OS X
  • RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, GND
  • Flow control: RTS/CTS , DSR/DTR, X-ON/X-OFF, None
Protocol USB 1.1 & 2.0
Power Via USB.  Less than 50mA
Connector MINI-B
USB Bridge Chip FTDI FT232R
OS Compatability Microsoft Windows® WHQL-certified, Mac OS X, Linux and Windows CE device drivers
Drivers <Click Here> to download USB Virtual COM port driver.
Application Note AN232B-05 Configuring Baud Rates
