Features:

The features below are what make a RavTrack PC the right choice for real-time tracking:

	1)	Real-time. See where your vehicles are NOW, not a few minutes ago. Position and status updates are available as quickly as every second. No other UHF tracking system has as fast an update rate as RavTrack.
	2)	In the Office or In the Field. Track your vehicles and assets at field offices, temporary work sites, remote locations, or in the office. The RavTrack PC is a complete stand-alone tracking system. No server required. No Internet required. No satellite required. A single PC and a RV-M7 is all that is required. The map on the display may be any graphics image, scanned map, or photo you choose.
	3)	Visualize your Business. The displayed map can be your construction site, or your park, or your Golf Course, or your city. See where people are, or should be. See where they aren't and should. RavTrack PC can show you your business in a way no voice system can. Zoom and switch between different maps with a click of the mouse.
	4)	One-Click status. Tracking is one thing it does well, but do you want to know status also? One-click on an icon on the map or click an entry in the tracked-object table, and the user can see complete vehicle status including location, distance, heading, velocity, I/O status, temperature, voltage, altitude, and radio signal strength.
	5)	Custom Alerts. Knowledge is power, and RavTrack PC gives you the power over your moving assets. Know where they are, when they move, how-long they are idle, or if they are miss-used. The RavTrack PC operator can be alerted to various transponder-specific events such as speeding, proximity to Points of Interest, Geo-fence violations, and digital input status.
	6)	Database Driven. The information on all units being tracked is stored in a Microsoft Access SQL database. All movements and events are logged in a separate MS Access SQL database. Users may use Access and other SQL tools to create custom reports or interface with the data in real-time.
	7)	Log Replay The user may select log entries to replay on the map, to show the past location and status information.
	8)	Up to 6 radio Channels. Expand the coverage with multiple radio channels. RavTrack PC will allow up to 6 radios to be connected to one PC, so up to 6 different RF channels may be utilized in the same area, or linked in via remote sites.
	9)	Low Cost Transponders. The highly integrated RV-M7 Transponder has a radio, modem, and GPS in one assembly. The per-unit cost is lower than any other UHF AVL product on the market. There is no cost for a wireless carrier or satellite provider.
	10)	Secure. All position transmissions are encrypted, so that only radios with the same pass-key code can communicate. The pass-key itself cannot be read out of the radio, so even a stolen radios will not make the system less secure. The RavTrack PC program is also administrator-rights protected, allowing a view-only user mode, and total-control for the administrator.
	11)	Advanced Features. Advanced features are configured when the Transponder is installed. The RavTrack Transponders have alarm inputs, status output pins for specialized applications. All RavTrack GX Transponders report position, velocity, time, temperature, voltage, altitude, I/O status, alarms, GPS signal quality, and radio signal quality in each transmission, so the system operator has enormous visibility to the status and location of his tracked objects.

Specifications;

Map Files

Any .jpg or .gif graphics file Photos, scanned maps, or screen captures may be used User may easily switch between available maps stored on local hard drive Comes with standard database of icons to display tracked objects Supplied utility to calibrate user maps Raveon map calibration service available User may add custom icons to map file

DataBases

Tracked Objects: Microsoft Access. One record for each RV-M7.     Fields:     ID, Name, Status, Time, Date of last report, Lat, Lon, Altitude, Alerts, Speed, Direction, Inputs, GPS status, Icon used, Voltage, Temperature, Radio Signal Strength System Log File: Microsoft Access. One record for each position report received over the air.     Fields:     Entry Number, ID, Status, Time, Date, Lat, Lon, Alerts, Speed, Altitude, Inputs, UTC time, Voltage, Temperature, RSSI, Operator Text System Log Filter: Log all activity or log only moving objects.

Map Home Location

Center map on current position as reported by local GPS Center map on a fixed lat-lon Optionally draw circles around home location On-click to re-center map on home location

Alerts Triggers (rule based):

Zone alert. entering or leaving Low battery Speeding Proximity to points of Interest on the map Distance from home location

Alert Actions

Message box pop-up showing ID and rule that caused the alert Play a .wav file Execute a shell program

Communications:

Radio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . RS232 COM port Maximum number of channels (open Com Ports): . . . . . . . . . . . . . .  6 Com port numbers supported . . . . . . . . . . . . . . . . . . . . . . . . . .  1-16 Protocols  . . . . . . . . . . . . . . . . . . . . . . . .Raveon $PRAVE, NMEA 0182

Screen Shots:

RavTrack PC Main Screen.

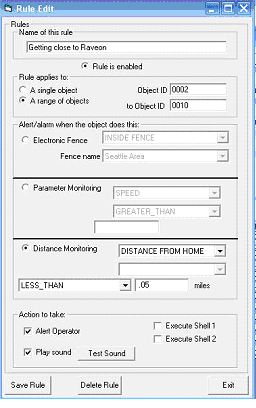

Rule Edit Screen

System Configuration Screens






Radio Channel Configuration
