 The The RV-M7-U UHF GPS transponder with the weatherproof housing option (-WX) is a rugged high-speed UHF data modem with a built-in 12-channel GPS receiver. The enclosure is sealed and IP65 rated. It is dust tight, and the unit may be sprayed with jets of water with no harm done.
It has all of the features of Raveon's RV-M7 GX transponders as well as an IP65 rated weatherproof enclosure and connections. With up to 5 watts of RF power output, and operates as both a GPS transponder for tracking, and a radio modem for sending and receiving data.
The The M7 GX may be configured for a number of different GPS applications, including:
| Transponder: |
|
Periodically transmit position and status |
| GPS display: |
|
Connect M7 GX to a hand-held or mobile GPS, and icons will appear on the display showing the location of all other M7-GX radios in the system. |
| Radar Display: |
|
Radar Display: Connect M7-GX to a marine plotter or radar display, and icons will appear on the display showing the location of all other M7-GX radios in the system. |
| RavTrack PC: |
|
Connect the M7-GX to a personal computer running RavTrack PC (or other PC software) to view a map showing location, status, log movement, set alerts, and make reports from the data. |
As well as transmitting its GPS position and status over the air, the M7-GX also has a data radio modem with integrated RS232/422/485 interface for sending and receiving data.
For privacy and security, over-the air encryption is standard on every M7-GX radio. For network versatility, the M7-GX incorporates a 16-bit identification code, allowing up to 65,000 objects to be identified in one system. For wide-area coverage, all M7-GX transponders may be set to store-and-forward messages from other M7-GX transponders. Although the M7-GX is the easiest to use modem on the market, and makes the easiest to set-up Automatic Vehicle Locations (AVL) system available, its re-programmability makes it extremely versatile. Most parameters within the modem may be re-configured to optimize it for specialized operations, extended range, or higher data throughput.
The transponder may be programmed and configured using Raveon's Radio Manager software program. More Details...
|
|
- Transmissions include ID, position, speed, heading, voltage, temperature, input/output status, UTC time, and proximity.
- Ultra-fast 3mS TX-RX switching and 4-level GFSK modem allows truly "Real Time" tracking and status.
- Outputs and accepts NMEA 0183 GLL, TLL, WPT, GSV, and PRAVE messages.
- High-speed over the air data rates. 19200bps in 25kHz channel, 9600bps in 12.5kHz
- Built-in TDMA channel access allowing truly real-time tracking (200 transmission in 10 seconds)
- Very low current draw. As low as 25mA average
- 16 bit addressing for up to 65,525 different unique IDs per channel.
- Programmable proximity alert ( 1-9999 meters) and programmable position report rate (1-9999 seconds).
All measurements made per TIA-603-B
General
- Frequency................... -UC: 450 - 480MHz / -UA (export only) 403 - 434MHz

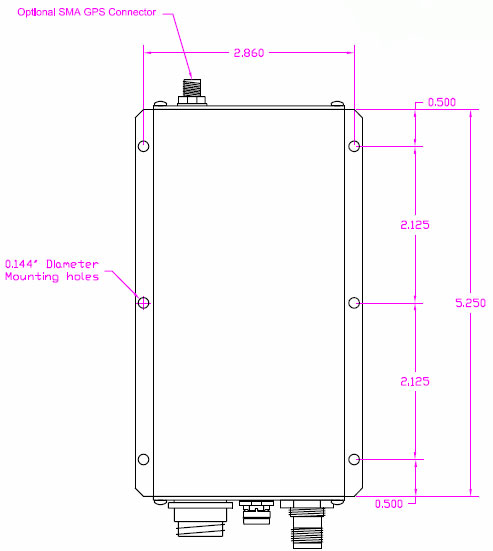

- Size ................... 5.25 X 2.6W X 0.95H
- Weight ................... 7 ounces (0.2kg)
- DC input voltage ................... 10-16V DC
- Typical current draw, receiving, over-the-air rates ................... < 4800bps <115mA
- Typical current draw, receiving, over-the-air rates >= 4800bps ................... <125mA
- Current draw when transmitting data ................... <1.5A max at 2 watts, 1.2A typical at 2watts / <2.7A at 5watts
- Low Power Mode standby current (AT command) ................... <30mA
- Sleep Mode standby current (hardware control) ................... <1mA
- Frequency stability ................... ±1.5ppm
- Over-the-air baud rates (programmable) ................... 4800, 5142, 8000, 9600, 19200
Note: Contact the factory for enhanced-sensitivity applications (1200 & 2400 baud)
- Internal data buffers (transmit and receive) ................... >2000 bytes
- Operating temperature range ................... -30ºC to +60ºC (-30ºC to +80ºC storage)
- TX-RX and RX-TX turn-around time ................... <3mS
- Power on time to operational ................... <500mS
- LPM Standby to operational ................... <20mS
- Internal fuse 3A mini blade. Littlefuse part number 0297003 or Raveon part, number 1X726-3
- FCC ID Model RV-M7-UC ................... SRS-RV-M7-UC
All other models for export or OEM use
Transmitter
- Maximum RF power output ................... ½ - 5 watts
- Maximum duty cycle ................... 100% at 2W, 25% at 5W
- Maximum transmit frequency deviation ................... ± 2.25kHz
- RF Bandwidth ................... 20Mhz, no-tune
- Occupied bandwidth ................... 11 kHz (12.5kHz channels) / 15.3kHz (25kHz channels)
- TX spurious outputs ................... < -70dBc
- Emissions designator................... 11K0F1D (12.5kHz channels) / 15K3F1D (25kHz channels)
Receiver
- Typical RX sensitivity (1% BER)
...................19200bps, 4-level, 25kHz channel -108dBm
...................9600bps, 4-level, 12.5kHz channel -108dBm
...................4800bps, 2-level -116dBm
- No-tune bandwidth ................... 20MHz
- RX selectivity ................... -50dB (12.5kHz channel spacing) / -65dB (25kHz channel spacing)
- Spurious and image rejection ................... -75dB
- RX intermodulation rejection ................... -70dB
- Conducted spurious emissions ................... <-53dBm
User Input and Output Signals
- Serial port baud rates ................... 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Voltage levels ................... RS-232, RS-422, and RS-485 complaint levels
- Modem handshake signals ................... RTS, CTS, DTR, DSR, CD
- Transceiver RF ................... 50 ohm BNC (TNC on -WX version)
- GPS Connection ................... SMA 50 ohm, 3.3V for amplified antenna
- Power ................... B+ input and Ground
- Digital Inputs ................... 2
- Power Connecto ................... Phoenix 18 36 18 9 ( Raveon P/N 1J165-3 )
GPS and Transponder Specifications
- Number of channels ................... 12
- Horizontal accuracy (24 hour static) ................... <2.5m 50%, <5m 90%
- Acquisition (-130dBm, 50%) ................... <40sec cold start, <8sec hot start
- Sensitivity Tracking ................... -150dBm, Acquisition -142dBm
- NMEA Output sentences ................... WPL, TLL, GLL, GSV, PRAVE
- Position report rate, programmable ................... 1 to 9999 seconds
- Position report resolution ................... 0.0001 degrees
- Voltage report resolution/accuracy ................... 0.1V/10%
- Temperature resolution and accuracy ................... 2 degrees C/2 degrees C
- Number of digital inputs ................... 2
- Velocity resolution and accuracy ................... 1km / 1km per hour
- GPS connector ................... SMA
SKU: RV-M7-UC-GX-WX

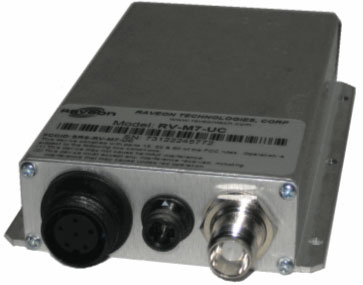

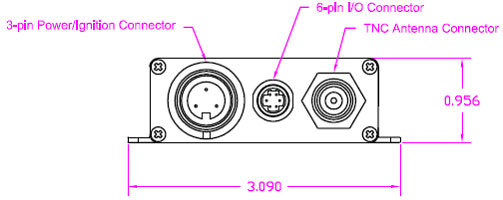

- RV-M7 GX Transceiver 450-480MHz, in IP65 weatherproof housing, built-in GPS, TNC RF connector, and SMA GPS connector. Waterproof 6-pin circular I/O connector, and 3-pin circular DC power connector.
- DC power cable. 6 foot, 3-pin circular connector.
- Quick-start guide.
|
|
Raveon model RV-M7 Transponder
